CSE-4/562 Spring 2021 - OLA and AQP

### OLA and AQP

#### CSE-4/562 Spring 2021

March 23, 2021

What is the best, correct technique for task X, when Y is true?

1. How do you define Correct and Best?
2. What correct alternatives are available?
3. How do you find the best available alternative

So Far: Correct = The original RA for a query.

Only queries guaranteed to produce identical results are correct

What happens when Correct allows for a margin of error?

• Aggregate query with some margin of error.
• ORDER BY LIMIT (Top-K) with some margin of error.
• LIMIT without ORDER BY (Any-K).

Sacrifice a little accuracy for a lot of speed

### Approximate Query Processing


SELECT SUM(A) FROM R


Naively, you need to see all values of R.A

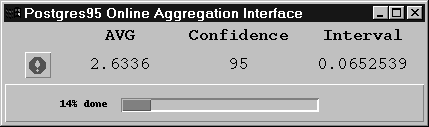

### Online Aggregation

$Avg(3,6,10,9,1,3,9,7,9,4,7,9,2,1,2,4,10,8,9,7) = 6$

$Avg(3,6,10,9,1) = 5.8$ $\approx 6$

$Sum\left(\frac{k}{N}\; Samples\right) \cdot \frac{N}{k} \approx Sum(*)$

Sampling lets you approximate aggregate values with orders of magnitude less data.

Question: How accurate is an estimate from $N$ samples

With $n$ tuples sampled uniformly with replacement

 $|AVG(samples) - AVG(real)|$ The absolute error $P(|AVG(samples) - AVG(real)| \geq \epsilon)$ Its probability of exceeding error threshold $\epsilon$ $P(|AVG(samples) - AVG(real)| \geq \epsilon) \leq 2e^{\frac{2n\epsilon^2}{(max(real) - min(real))^2}}$ ... is below a threshold based on $\epsilon$, $n$, and the min/max value.

"Hoeffding's Bound"

### Bootstrapping

Idea 1: Generate a bunch of samples of the same size and see how they're distributed.

The resulting histogram models the distribution of samples.

Problem: Generating samples is expensive!

Idea 2: Generate one sample, then resample to see how its distributed

The resulting histogram still models (in expectation) the distribution of samples.

### Error Bounds

SUM, COUNT, AVG (sampling with replacement)
Hoeffding's Bound
Chernoff's Bound
SUM, COUNT, AVG (sampling without replacement)
Serfling's Bound
Any Other Aggregate
Bootstrapping

Keep adding samples until you reach a target accuracy

Keep adding samples until you run out of time

### Generating Samples

Sampling From Disk
Random seeks are slow
Sampling For Group-By or Selections
Low-frequency events don't get sampled
Sampling From Joins

### Sampling From Disk

Idea 1: Pick Randomly!


for i from 1 to num_samples:
sample_id = random(0, num_records)
samples += [ table.where( rowid = sample_id ) ]


Problem: Random scans are EXPENSIVE.

Idea 2: Assume data already randomized!

Pick a random start record and read sequentially from there.

Problem: Sequential records are almost never IID.

Idea 3: Prebuild samples!

Shuffle data into fixed size sample buckets (e.g., BlinkDB).

### Sampling From Group-By

EmployeeCitySalary
AliceNYC$120k BobNYC$110k
CarolNYC$115k DaveSyracuse$80k

SELECT City, AVG(Salary) FROM NYS_Salaries;


Problem: Most data is about NYC. With $N$ samples taken uniformly, margins of error for other cities are much bigger

### Stratified Sampling

Generate $\frac{N}{\texttt{COUNT}(\texttt{DISTINCT } City)}$ samples for each group

Use $\texttt{COUNT}(\texttt{DISTINCT } City)$ instead of $\texttt{COUNT}(*)$ as the total group size

### Index Striding

"Online Aggregation" (Hellerstein et. al.)

Idea 2: Pre-generate sample buckets across a range of different strata (e.g., BlinkDB).

### Sampling from Joins

Assume: $\texttt{UNIQ}(A, R) = \texttt{UNIQ}(A, S) = N$

It takes $O(\sqrt{N})$ samples from both $R$ and $S$
to get even one match.

### Weighted Joins

Exploit Foreign Keys
Sample from the referencing table, join with full reference tables
Stratified Sampling
For many-many joins, stratify on the join attribute(s)

### "Join Synopses"

$R \bowtie_B S \bowtie_C T$

• $R.B$ is a foreign key reference to $S.B$
• $S.C$ is a foreign key reference to $T.C$

Sample from R, Use all of S, T

### "Join Synopses"

• Foreign keys keep intermediate state small.
• Fast evaluation with INLJ or In-Mem Hash Join.
• Sampling is not biased.
"Join synopses for approximate query answering" (Acharya et. al.)

### Stratified Sampling

For each tuple sampled from $R$, sample exactly one joining tuple from $S$

Question: Are we biasing the sampling process

Goal: Sample $r \bowtie s$ with probability $p((r\bowtie s) \in R\bowtie S)$

Actual: Sample $r \bowtie s$ with probability $p(r \in R) p((r\bowtie s) \in R\bowtie S | r \in R)$

### Bayes' Theorem

$p(r \in R) p((r\bowtie s) \in R\bowtie S) | r \in R)$ $= p(r \in R, (r\bowtie s) \in R\bowtie S)$

$\neq p((r\bowtie s) \in R\bowtie S)$

### Corrective Factor

$p(r \in R, (r\bowtie s) \in R\bowtie S)$ $\cdot n$ $= p((r\bowtie s) \in R\bowtie S)$

$n = \frac{ p((r\bowtie s) \in R\bowtie S) }{ p(r \in R, (r\bowtie s) \in R\bowtie S) }$

$= \frac{ 1 }{ p(r \in R | (r\bowtie s) \in R\bowtie S) }$ $\approx |R| \cdot |\{\;s\;|s \in S, r.A = S.A\;\}$

The probability that a tuple in $R$ participates in a join.

Should I sample from $R$ or $S$ first?

(What if only one tuple from $R$ joins with every tuple from $S$)

### "Wander Join"

Sample with all join orders at random.

"Wander Join: Online Aggregation via Random Walks" (Li et. al.)

### Convergent Joins

Ripple Join
Incrementally increase the sample size

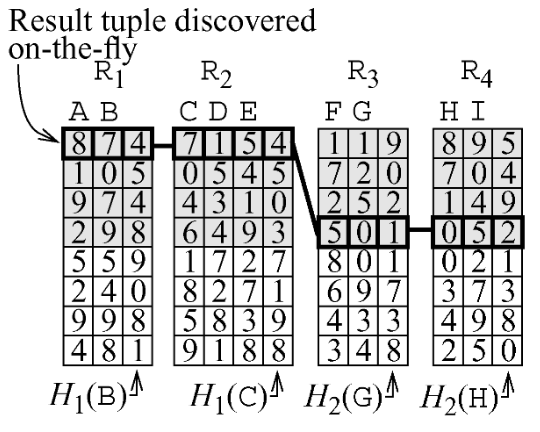

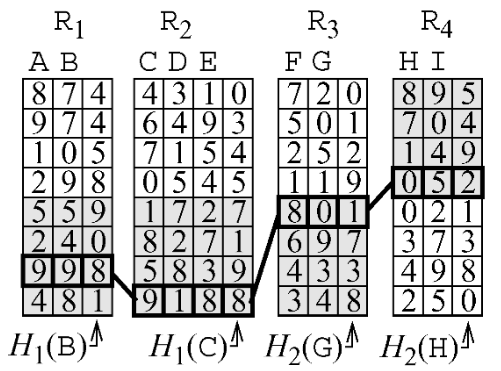

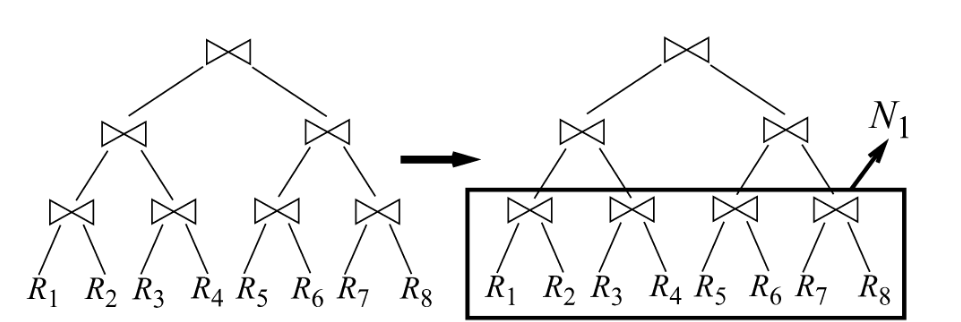

Turbo DBO Join

Idea 1: Start small, keep making the sample size bigger

### Ripple Join

$$Q = R \bowtie S$$
1. $Q \leftarrow \emptyset$, $R_{sample} \leftarrow \emptyset$, and $S_{sample} \leftarrow \emptyset$
2. Sample $r \in R$
1. $Q \leftarrow r \bowtie S_{sample}$
2. $R_{sample} \leftarrow R_{sample} \uplus \{r\}$
3. Sample $s \in S$
1. $Q \leftarrow s \bowtie R_{sample}$
2. $S_{sample} \leftarrow S_{sample} \uplus \{s\}$
4. Goto 2

### Ripple Join

Idea 2: Normal BNLJ, but piggyback sampling off of the results.
