Scala

Scala Types

Scala Types

Mutable vs Immutable

Mutable

Something that can be changed

Immutable

Something that can not be changed

• val: A value that can not be reassigned (immutable)
• var: A variable that can be reassigned (mutable)

Mutable vs Immutable

scala> val s = mutable.Set(1, 2, 3)

scala> s += 4

scala> println(s.mkString(", ")
1, 2, 3, 4


If a val points to a mutable object, the mutable object can still be changed.

Logarithms

Logarithms

• Let $a, b, c, n > 0$
• Exponent Rule: $\log(n^a) = a \log(n)$
• Product Rule: $\log(an) = \log(a) + \log(n)$
• Division Rule: $\log\left(\frac{n}{a}\right) = \log(n) - \log(a)$
• Change of Base from $b$ to $c$: $\log_b(n) = \frac{\log_c(n)}{\log_c(b)}$
• Log/Exponent are Inverses: $b^{\log_b(n)} = \log_b(b^n) = n$

Growth Functions

Growth Functions

Assumptions about $f(n)$

Problem sizes are non-negative integers

$n \in \mathbb Z^+ \cup \{0\}$

We can't reverse time

$f(n) \geq 0$

Smaller problems aren't harder than bigger problems

For any $n_1 < n_2$, $f(n_1) \leq f(n_2)$

To make the math simpler, we'll allow fractional steps.

Asymptotic Analysis @ 5000 feet

Goal: Organize runtimes (growth functions) into different Complexity Classes.

Within a complexity class, runtimes "behave the same"

Big-Theta

The following are all saying the same thing

• $\lim_{n\rightarrow \infty}\frac{f(n)}{g(n)} =$ some non-zero constant.
• $f(n)$ and $g(n)$ have the same complexity.
• $f(n)$ and $g(n)$ are in the same complexity class.
• $f(n) \in \Theta(g(n))$
• $f(n)$ is bounded from above and below by $g(n)$

Big-Theta (As a Bound)

$f(n) \in \Theta(g(n))$ iff...

$\exists c_{low}, n_{0}$ s.t. $\forall n > n_{0}$, $f(n) \geq c_{low}\cdot g(n)$

There is some $c_{low}$ that we can multiply $g(n)$ by so that $f(n)$ is always bigger than $c_{low}g(n)$ for values of $n$ above some $n_0$

$\exists c_{high}, n_{0}$ s.t. $\forall n > n_{0}$, $f(n) \leq c_{high}\cdot g(n)$

There is some $c_{high}$ that we can multiply $g(n)$ by so that $f(n)$ is always smaller than $c_{high}g(n)$ for values of $n$ above some $n_0$

Proving Big-Theta

1. Assume $f(n) \geq c_{low}g(n)$.
2. Rewrite the above formula to find a $c_{low}$ for which it holds (for big enough n).
3. Assume $f(n) \leq c_{high}g(n)$.
4. Rewrite the above formula to find a $c_{high}$ for which it holds (for big enough n).

Shortcut: Find the dominant term being summed, and remove constants.

Common Runtimes

Constant Time: $\Theta(1)$

e.g., $T(n) = c$ (runtime is independent of $n$)

Logarithmic Time: $\Theta(\log(n))$

e.g., $T(n) = c\log(n)$ (for some constant $c$)

Linear Time: $\Theta(n)$

e.g., $T(n) = c_1n + c_0$ (for some constants $c_0, c_1$)

Quadratic Time: $\Theta(n^2)$

e.g., $T(n) = c_2n^2 + c_1n + c_0$

Polynomial Time: $\Theta(n^k)$ (for some $k \in \mathbb Z^+$)

e.g., $T(n) = c_kn^k + \ldots + c_1n + c_0$

Exponential Time: $\Theta(c^n)$ (for some $c \geq 1$)

Other Bounds

$f(n) \in \Theta(g(n))$ iff...

$\exists c_{low}, n_{0}$ s.t. $\forall n > n_{0}$, $f(n) \geq c_{low}\cdot g(n)$

There is some $c_{low}$ that we can multiply $g(n)$ by so that $f(n)$ is always bigger than $c_{low}g(n)$ for values of $n$ above some $n_0$

$\exists c_{high}, n_{0}$ s.t. $\forall n > n_{0}$, $f(n) \leq c_{high}\cdot g(n)$

There is some $c_{high}$ that we can multiply $g(n)$ by so that $f(n)$ is always smaller than $c_{high}g(n)$ for values of $n$ above some $n_0$

Other Bounds

$f(n) \in O(g(n))$ iff...

$\exists c_{low}, n_{0}$ s.t. $\forall n > n_{0}$, $f(n) \geq c_{low}\cdot g(n)$

There is some $c_{low}$ that we can multiply $g(n)$ by so that $f(n)$ is always bigger than $c_{low}g(n)$ for values of $n$ above some $n_0$

$\exists c_{high}, n_{0}$ s.t. $\forall n > n_{0}$, $f(n) \leq c_{high}\cdot g(n)$

There is some $c_{high}$ that we can multiply $g(n)$ by so that $f(n)$ is always smaller than $c_{high}g(n)$ for values of $n$ above some $n_0$

Other Bounds

$f(n) \in \Omega(g(n))$ iff...

$\exists c_{low}, n_{0}$ s.t. $\forall n > n_{0}$, $f(n) \geq c_{low}\cdot g(n)$

There is some $c_{low}$ that we can multiply $g(n)$ by so that $f(n)$ is always bigger than $c_{low}g(n)$ for values of $n$ above some $n_0$

$\exists c_{high}, n_{0}$ s.t. $\forall n > n_{0}$, $f(n) \leq c_{high}\cdot g(n)$

There is some $c_{high}$ that we can multiply $g(n)$ by so that $f(n)$ is always smaller than $c_{high}g(n)$ for values of $n$ above some $n_0$

Other Bounds

Big-O: "Worst Case" bound

The set of all functions in the same or a smaller complexity class (same or faster runtime).

Big-Ω: "Best Case" bound

The set of all functions in the same or a bigger complexity class (same or slower runtime).

Big-ϴ: "Tight" bound

The set of all functions in the same complexity class (same runtime).

"Tight Worst Case"

$n^2 \in O(n^3)$ is true, but you can do better.

$\Theta(g(n)) = O(g(n)) \cap \Omega(g(n))$

$\Theta$ is the same as ($O$ and $\Omega$)

Analyzing Code

The growth function for a block of code...

One Line of Code

Sum the growth functions of every method the line invokes.

Lines of Sequential Code

Sum up the growth function of each line of code.

Loops

Use a summation ($\sum$) over the body of the loop.

(Shorthand: $k$ loops with a $O(f(n))$ body = $O(k\cdot f(n))$

Sequences

The Seq ADT

apply(idx: Int): A

Get the element (of type A) at position idx.

iterator: Iterator[A]

Get access to view all elements in the seq, in order, once.

length: Int

Count the number of elements in the seq.

The mutable.Seq ADT

apply(idx: Int): A

Get the element (of type A) at position idx.

iterator: Iterator[A]

Get access to

view

all elements in the seq, in order, once.

length: Int

Count the number of elements in the seq.

insert(idx: Int, elem: A): Unit

Insert an element at position idx with value elem.

remove(idx: Int): A

Remove the element at position idx and return the removed value.

Sequence Implementations

Linked List

$O(1)$ mutations by reference or head/tail, $O(n)$ otherwise

Array

$O(1)$ access/update, $O(n)$ insert/remove

ArrayBuffer

$O(1)$ access/update, $O(n)$ insert/remove

$O(1)$ amortized append

Amortized $O(1)$

Bounds for one call:

Amortized says nothing.

Bounds for $n$ calls:

Guaranteed always $< n\cdot O(1)$.

Expected $O(1)$

No guarantees at all!

Guarantees

Tight $\Theta(f(n))$

The cost of one call will always be a constant factor from $f(n)$.

Worst Case $O(f(n))$

The cost of one call will never be worse than a constant factor from $f(n)$.

Amortized Worst Case $O(f(n))$

The cost of n calls will never be worse than a constant factor from $n \cdot f(n)$.

Expected Worst Case $O(f(n))$

"Usually" not worse than a constant factor from $f(n)$, but no promises.

Sequences

Recursion

Fibonacci

What's the complexity? (in terms of n)

    def fibb(n: Int): Long =
      if(n < 2){ 1 }
      else { fibb(n-1) + fibb(n-2) }


Fibonacci

Test Hypothesis: $T(n) \in O(2^n)$

Merge Sort

  def merge[A: Ordering](left: Seq[A], right: Seq[A]): Seq[A] = {
    val output = ArrayBuffer[A]()

    val leftItems = left.iterator.buffered
    val rightItems = right.iterator.buffered

    while(leftItems.hasNext || rightItems.hasNext) {
      if(!left.hasNext)          { output.append(right.next) }
      else if(!right.hasNext)    { output.append(left.next) }
      else if(Ordering[A].lt( left.head, right.head ))
                                 { output.append(left.next) }
      else                       { output.append(right.next) }
    }
    output.toSeq
  }


Merge Sort

Each time though loop advances either left or right.

Total Runtime: $\Theta(|\texttt{left}| + |\texttt{right}|)$

Merge Sort

Observation: Merging two sorted arrays can be done in $O(n)$.

Idea: Split the input in half, sort each half, and merge.

Merge Sort

    def sort[A: Ordering](data: Seq[A]): Seq[A] =
    {
      if(data.length <= 1) { return data }
      else {
        val (left, right) = data.splitAt(data.length / 2)
        return merge(
          sort(left),
          sort(right)
        )
      }
    }


Merge Sort

Divide: Split the sequence in half

$D(n) = \Theta(n)$ (can do in $\Theta(1)$)

Conquer: Sort left and right halves

$a = 2$, $b = 2$, $c = 1$

Combine: Merge halves together

$C(n) = \Theta(n)$

Merge Sort

How can we find a closed-form hypothesis?

Idea: Draw out the cost of each level of recursion.

Merge Sort: Recursion Tree

Each node of the tree shows $D(n) + C(n)$

Hypothesis: $n \cdot \log(n)$

Merge Sort: Proof By Induction

Now use induction to prove that there is a $c, n_0$
such that $T(n) \leq c \cdot n\log(n)$ for any $n > n_0$

Merge Sort: Proof By Induction

Base Case: $T(1) \leq c \cdot 1$

$$c_0 \leq c$$

True for any $c > c_0$

Merge Sort: Proof By Induction

Assume: $T(\frac{n}{2}) \leq c \frac{n}{2} \log\left(\frac{n}{2}\right)$

Show: $T(n) \leq c n \log\left(n\right)$

Stacks and Queues

Stacks vs Queues

Push

Put a new object on top of the stack

Pop

Remove the object on top of the stack

Top

Peek at what's on top of the stack

Enqueue

Put a new object at the end of the queue

Dequeue

Remove the next object in the queue

Head

Peek at the next object in the queue

Queues vs Stacks

Queue

First in, First out (FIFO)

Stack

Last in, First Out (LIFO / FILO)

Graphs

Graphs

A graph is a pair $(V, E)$ where

• $V$ is a set of vertices
• $E$ is a set of vertex pairs called edges
• edges and vertices may also store data (labels)

Edge Types

Directed Edge (e.g., transmit bandwidth)

• Ordered pair of vertices $(u, v)$
• origin ($u$) → destination ($v$)

Undirected edge (e.g., round-trip latency)

• Unordered pair of vertices $(u, v)$

Directed Graph

All edges are directed

Undirected Graph

All edges are undirected

Terminology

Endpoints (end-vertices) of an edge

U, V are the endpoints of a

Edges incident on a vertex

a, b, d are incident on V

Adjacent Vertices

U, V are adjacent

Degree of a vertex (# of incident edges)

X has degree 5

Parallel Edges

h, i are parallel

Self-Loop

j is a self-loop

Simple Graph

A graph without parallel edges or self-loops

Notation

$n$

The number of vertices

$m$

The number of edges

$deg(v)$

The degree of vertex $v$

Graph Properties

Proof: Each edge is counted twice

Graph Properties

In a directed graph with no self-loops and no parallel edges:

• No parallel edges: each pair connected at most once
• No self loops: pick each vertex once

$n$ choices for the first vertex
$(n-1)$ choices for the second vertex $$m \leq n(n-1)$$

A (Directed) Graph ADT

Two type parameters (Graph[V, E])

V: The vertex label type

E: The edge label type

Vertices

... are elements (like Linked List Nodes)

... store a value of type V

Edges

... are elements

... store a value of type E

A (Directed) Graph ADT

  trait Graph[V, E] {
    def vertices: Iterator[Vertex]
    def edges: Iterator[Edge]
    def addVertex(label: V): Vertex
    def addEdge(orig: Vertex, dest: Vertex, label: E): Edge
    def removeVertex(vertex: Vertex): Unit
    def removeEdge(edge: Edge): Unit
  }


A (Directed) Graph ADT

  trait Vertex[V, E] {
    def outEdges: Seq[Edge]
    def inEdges: Seq[Edge]
    def incidentEdges: Iterator[Edge] = outEdges ++ inEdges
    def edgeTo(v: Vertex): Boolean
    def label: V
  }

  trait Edge[V, E] {
    def origin: Vertex
    def destination: Vertex
    def label: E
  }


Edge List

Edge List Summary

• addEdge, addVertex: $O(1)$
• removeEdge: $O(1)$
• removeVertex: $O(m)$
• vertex.incidentEdges: $O(m)$
• vertex.edgeTo: $O(m)$
• Space Used: $O(n) + O(m)$

Idea: Store the in/out edges for each vertex.

Attempt 3: Adjacency List

    class DirectedGraphV3[V, E] extends Graph[V, E] {
      /* ... */
      class Vertex(label: V) = {
        var node: DoublyLinkedList[Vertex].Node = null
        val inEdges = DoublyLinkedList[Edge]()
        val outEdges = DoublyLinkedList[Edge]()
        /* ... */
      }
      class Edge(orig: Vertex, dest: Vertex, label: E) = {
        var node: DoublyLinkedList[Edge].Node = null
        var origNode: DoublyLinkedList[Edge].Node = null
        var destNode: DoublyLinkedList[Edge].Node = null
        /* ... */
      }
      /* ... */
    }

Adjacency List Summary

• addEdge, addVertex: $O(1)$
• removeEdge: $O(1)$
• vertex.incidentEdges: $O(deg(vertex))$
• removeVertex: $O(deg(vertex))$
• vertex.edgeTo: $O(deg(vertex))$
• Space Used: $O(n) + O(m)$

A few more definitions...

A subgraph $S$ of a graph $G$ is a graph where...

$S$'s vertices are a subset of $G$'s vertices

$S$'s edges are a subset of $G$'s edges

A spanning subgraph of $G$...

Is a subgraph of $G$

Contains all of $G$'s vertices.

A few more definitions...

A graph is connected...

If there is a path between every pair of vertices

A connected component of $G$...

Is a maximal connected subgraph of $G$

• "maximal" means you can't add any new vertex without breaking the property
• Any subset of $G$'s edges that connects the subgraph is fine.

A few more definitions...

A free tree is an undirected graph $T$ such that:

There is exactly one simple path between any two nodes

• T is connected
• T has no cycles

A rooted tree is a directed graph $T$ such that:

One vertex of $T$ is the root

There is exactly one simple path from the root to every other vertex in the graph.

A (free/rooted) forest is a graph $F$ such that

Every connected component is a tree.

A few more definitions...

A spanning tree of a connected graph...

Is a spanning subgraph that is a tree.

Is not unique unless the graph is a tree.

Depth-First Search

Summing up...

Depth-First Search

Summing up...

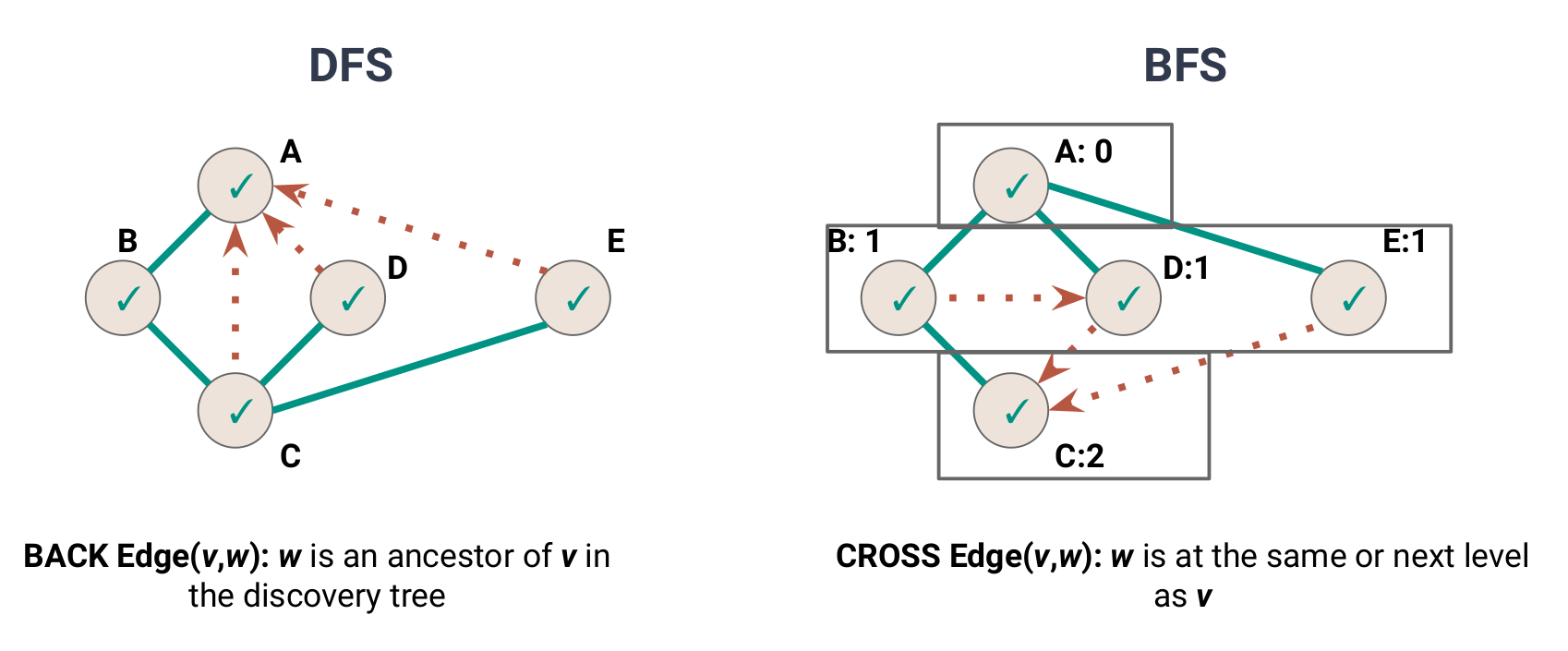

DFS vs BFS
