Databases?

Data Structures?

CSE 562; Database Systems

• A bit of operating systems
• A bit of hardware
• A bit of compilers
• A bit of distributed systems

Applied Computer Science

      CREATE VIEW salesSinceLastMonth AS
        SELECT l.*
        FROM lineitem l, orders o
        WHERE l.orderkey = o.orderkey
        AND o.orderdate > DATE(NOW() - '1 Month')


      SELECT partkey FROM salesSinceLastMonth
      ORDER BY shipdate DESC LIMIT 10;


      SELECT suppkey, COUNT(*)
      FROM salesSinceLastMonth
      GROUP BY suppkey;


      SELECT DISTINCT partkey
      FROM salesSinceLastMonth


      def really_expensive_computation():
        return [
          expensive_computation(i)
          for i in range(1, 1000000):
          if expensive_test(i)
        ]


      print(sorted(really_expensive_computation())[:10])


      print(len(really_expensive_computation()))


      print(set(really_expensive_computation()))


      def really_expensive_computation():
        return [
          expensive_computation(i)
          for i in range(1, 1000000):
          if expensive_test(i)
        ]

      view = really_expensive_computation()


      print(sorted(view)[:10])


      print(len(view))


      print(set(view))


Opportunity: Views are queried frequently

Idea: Pre-compute and save the view’s contents!

Btw... this idea is the essence of CSE 250.

When the base data changes,
the view needs to be updated too!

      def init():
        view = query(database)


Our view starts off initialized

Idea: Recompute the view from scratch when data changes.

      def update(changes):
        database = database + changes
        view = query(database) # includes changes


      def update(changes):
        view = delta(query, database, changes)
        database = database + changes


Intuition

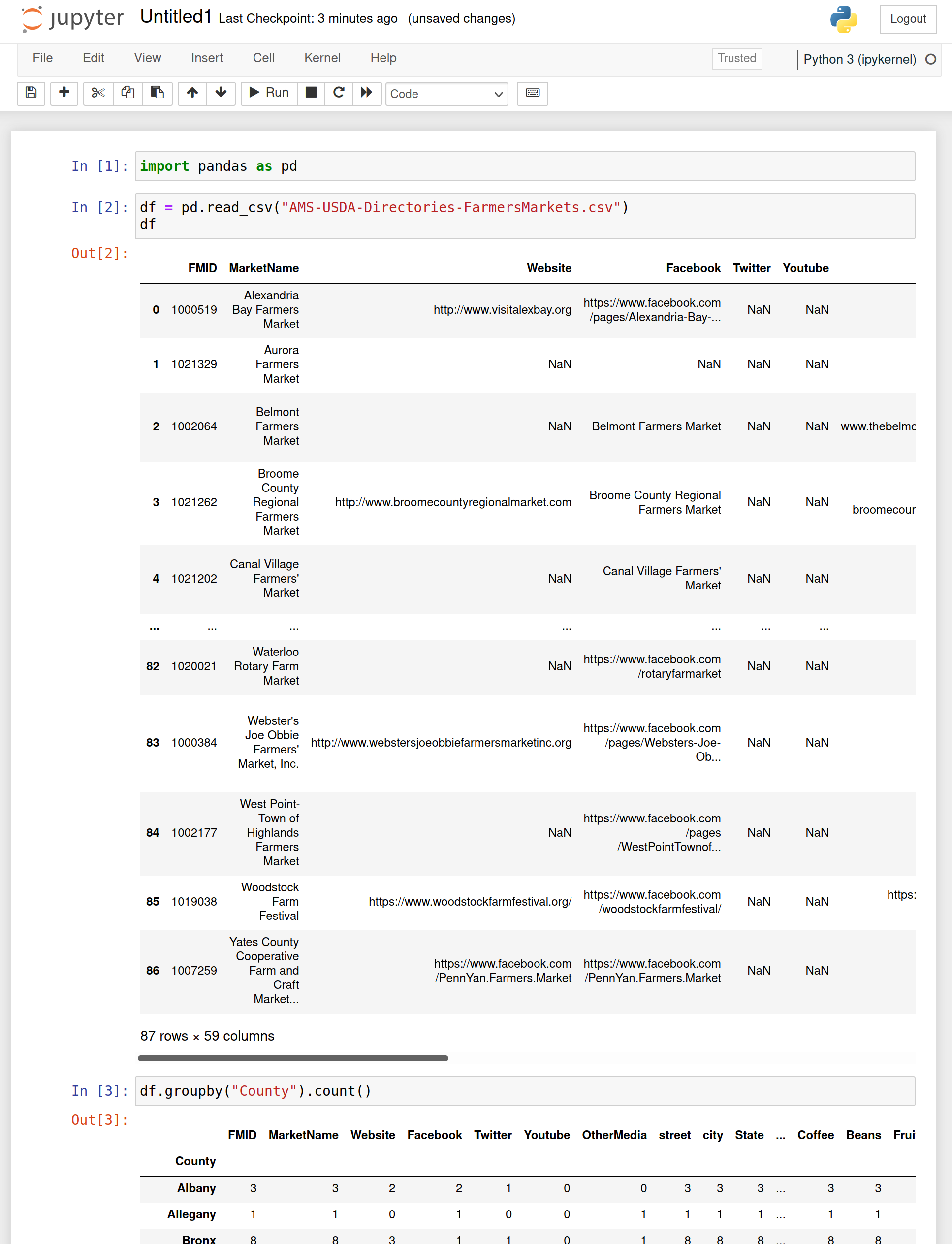

  import pandas as pd


  df = pd.read_csv("AMS-USDA-Directories-FarmersMarkets.csv")

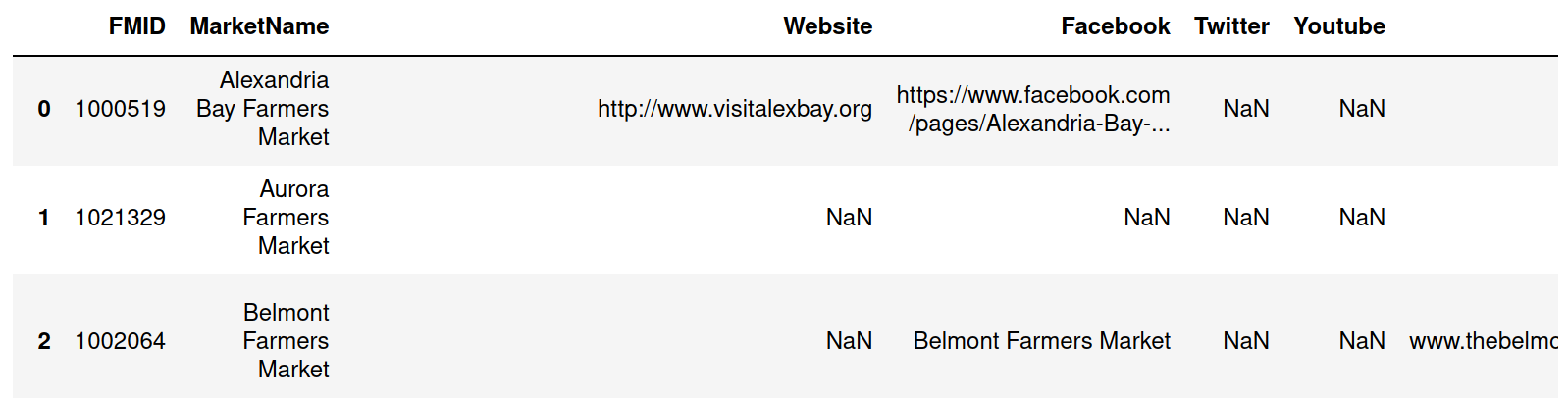

  df


  df.groupby("County").count()


...

Cells are code snippets that get pasted into a long running kernel

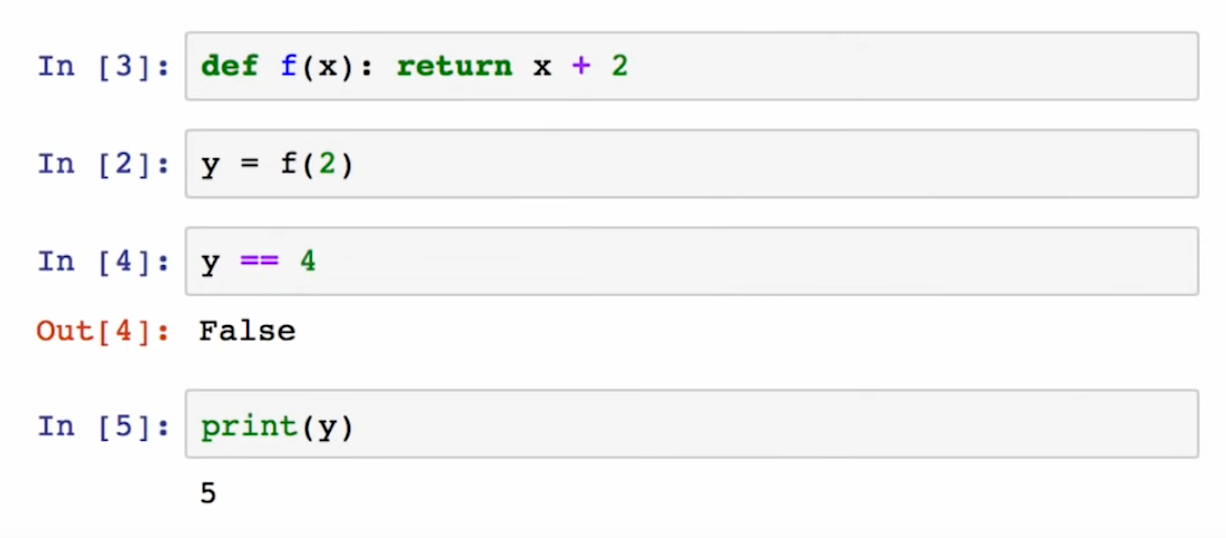

Evaluation Order ≠ Notebook Order

... but why?

In a monokernel...

  import pandas as pd


  df = pd.read_csv("really_big_dataset.csv")


  test = df.iloc[:800]
  train = df.iloc[800:]


  model = train_linear_regression(train, "target")


  evaluate_linear_regresion(model, test, "target")


  import pandas as pd


  df = pd.read_csv("really_big_dataset.csv")


  test = df.iloc[:500]
  train = df.iloc[500:]


  model = train_linear_regression(train, "target")


  evaluate_linear_regresion(model, test, "target")


Q1: Which cells need to be re-evaluated?

Idea 1: All of them!

  import pandas as pd

  df = pd.read_csv("really_big_dataset.csv")
  test = df.iloc[:500]
  train = df.iloc[500:]

  model = train_linear_regression(train, "target")

  evaluate_linear_regresion(model, test, "target")


... but df is still around, and you can "re-use" it.

Idea 2: Skip cells that haven't changed.

... but you need to keep track of this.

Data Flow Graph

Cell 3 changed, so re-evaluate only cells 4 and 5

... but

...

  model = train_linear_regression(train, "target")


  evaluate_linear_regresion(model, test, "target")


  df = pd.read_csv("another_really_big_dataset.csv")
  test = df.iloc[:500]
  train = df.iloc[500:]


df has changed!

We want to "snapshot" df in between cells.

The kernel runs, snapshots its variables, and quits.

Microkernel Notebooks

• Lots of small "micro-kernels"
• Explicit inter-cell messaging
• Messsages are snapshotted for re-use

Demo

https://vizierdb.info

https://github.com/VizierDB/vizier-scala
